Axially Split Horizontal Multistage Pump

KSG pump/KDS pump is a horizontal multistage centrifugal pump with radial split and segmental structure. It is mainly suitable for conveying clean or slightly contaminated liquids; low temperature or high-temperature liquids. It is generally used in water supply devices, thermal power plants, pipeline pressurization, and refrigeration engineering. When the pressure of the conveyed medium is high, the working temperature of the medium and the material used for the pump should be considered.

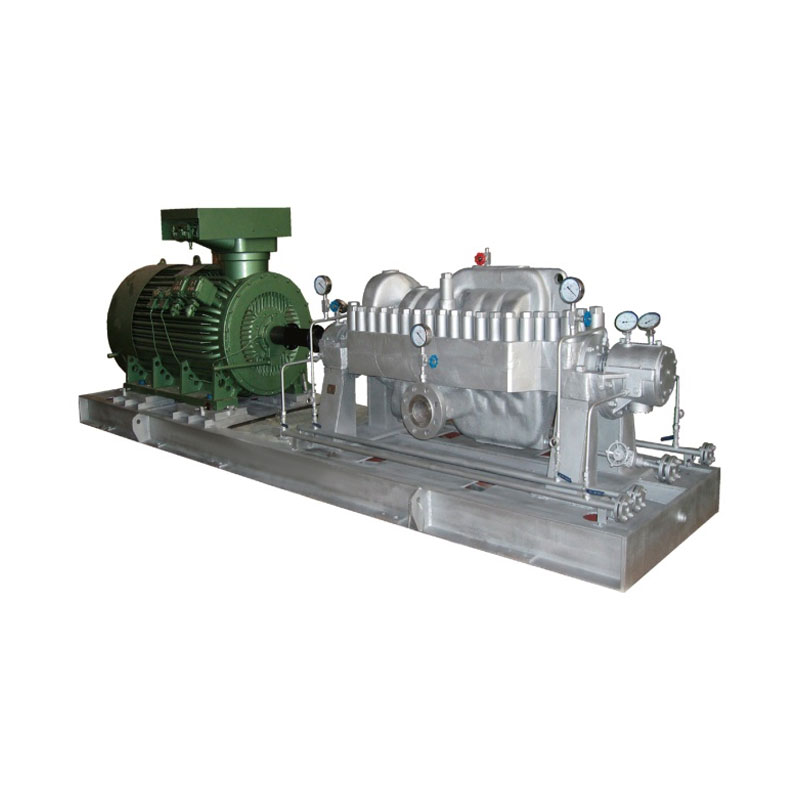

KDM series pumps are horizontal, multistage, axially split, double volute pumps with symmetrically distributed impellers. Different materials, pressure levels, and stages are selected according to different industries and mines. The stage impeller can be a single suction impeller or a double suction impeller. Convey crude oil, petroleum products, seawater, and other pure or impurity-containing liquids. MSD is widely used in refineries, petrochemicals, water injection, pipelines, power generation applications, etc.

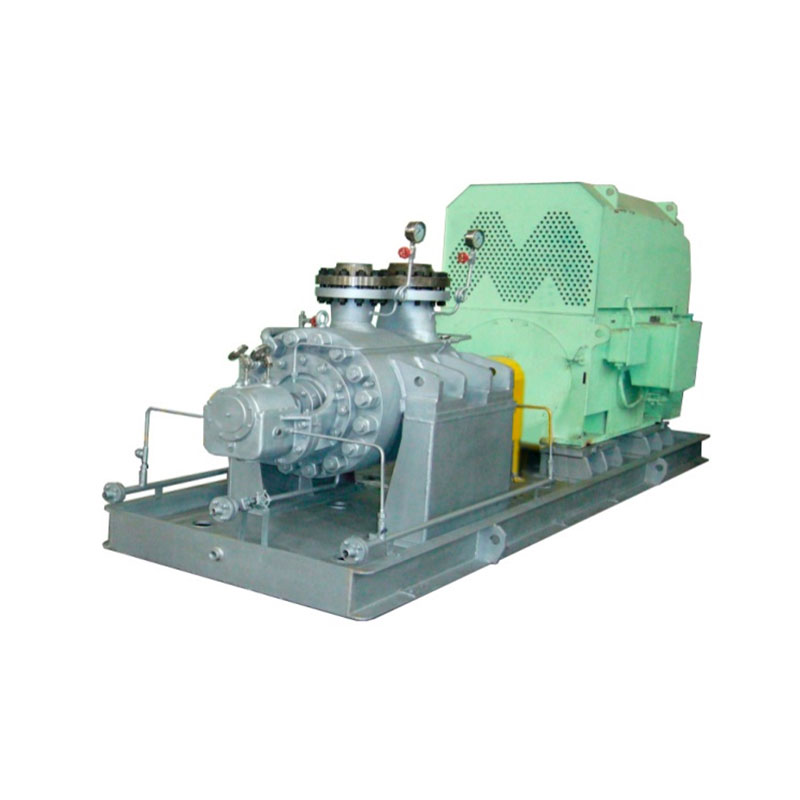

KSZ/KDZ series pumps are horizontal, multistage, radially split, back-pull barrel pumps designed according to API610 specifications with standard API BB5 structure. Suitable for clean, cold hot, neutral, or corrosive liquids, mainly used in refineries, chemical plants, gas refineries, refrigeration projects, coal processing projects, marine projects, etc.

KSG(BB2)

Flow rate

 ~1000 m3/h

Lift

 ~3200 m

Temperature

 -80~+450 ℃

Pressure

 ~35 MPa

KSG(BB3)

Flow rate

 ~1500 m3/h

Lift

 ~30200 m

Temperature

~+200 ℃

Pressure

 ~35 MPa

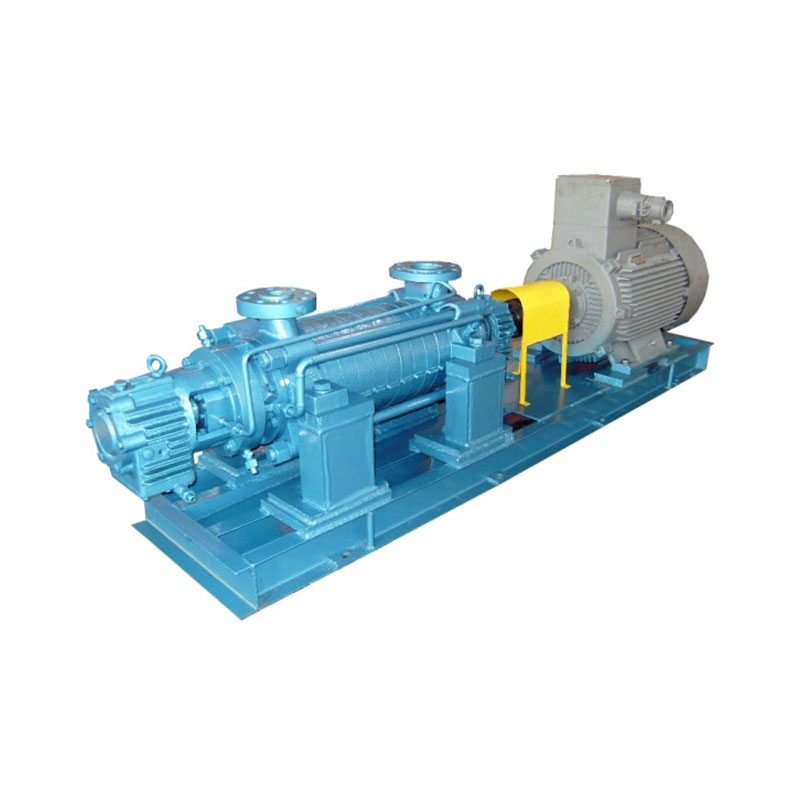

KSG(BB4)

Flow rate

 ~1000 m3/h

Lift

 ~1600 m

Temperature

-80~+180 ℃

Pressure

 ~15 MPa

KSG(BB5)

Flow rate

 ~1000 m3/h

Lift

 ~3200 m

Temperature

-30~+425 ℃

Pressure

 ~35 MPa
