Vertical Centrifugal Pump

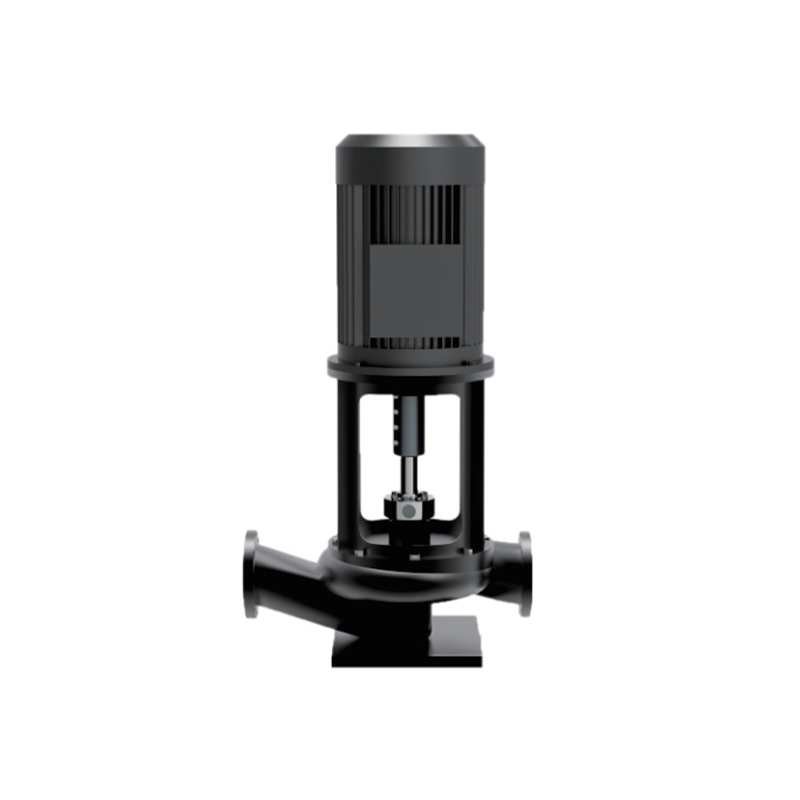

WVI series pumps are designed according to AP610 OH4 standard and are vertical pipeline radial split single suction heavy-duty process centrifugal pumps. The vertical configuration is a compact pump solution that reduces the cost of the base and greatly improves space utilization.

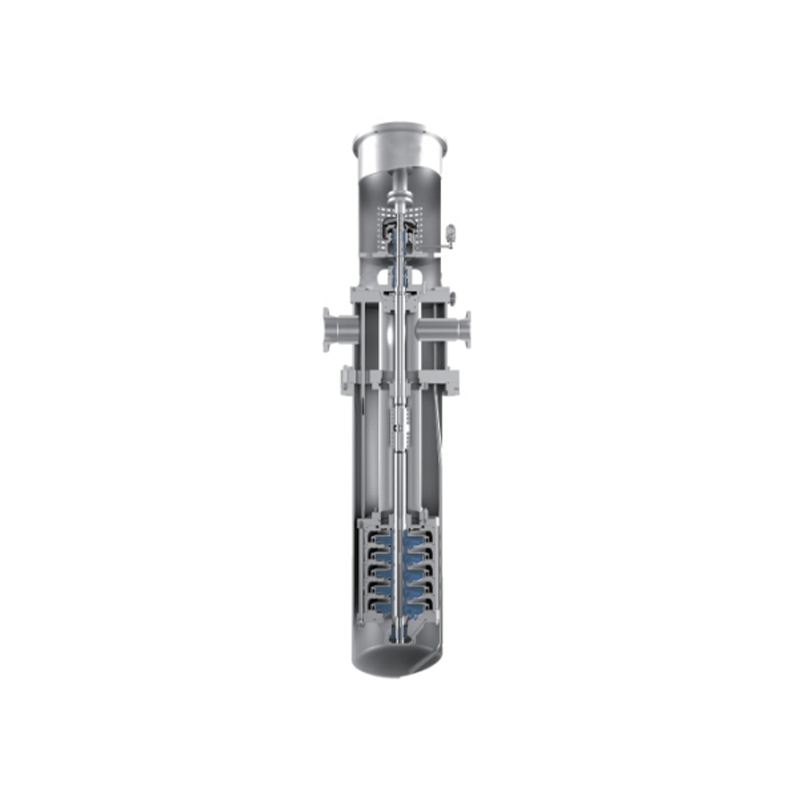

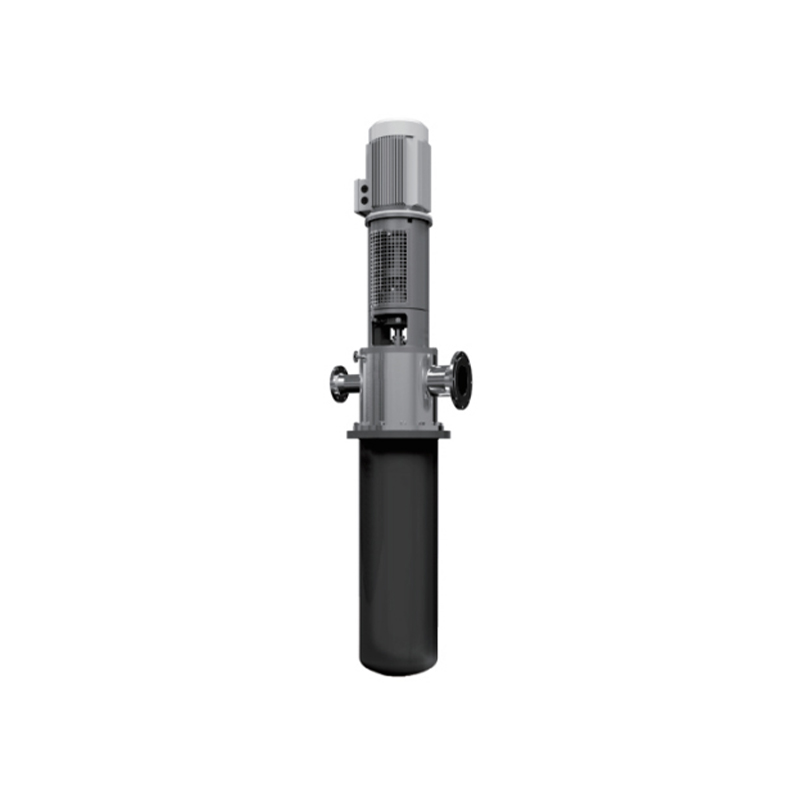

WVM vertical centrifugal pumps are widely used for condensate extraction in petrochemical and thermal power plants; high efficiency and low NPSHr characteristics make WVM series pumps the popular pumps in these industries.

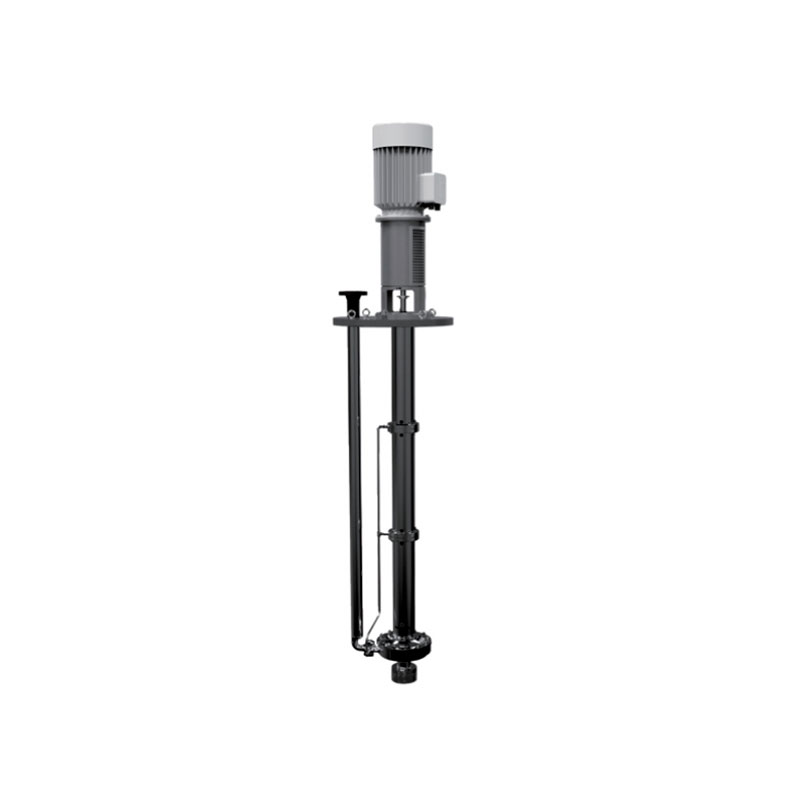

WVS series are single-stage centrifugal sewage pumps that meet the AP1 610 (lSO 13709) standard. The pump can transport clean or slightly contaminated liquids, which has obvious advantages compared to similar pumps.

Application range:
• Fluid processing in petrochemical and refineries
• Fertilizer and power industry
• Transportation of acids, alkalis, used oils, etc.
• Strong alkaline and strong acidic liquids
• Boiler feed water
• Natural gas
• Midstream and downstream process fluid transportation
• Power plants, hot water circulation, condensate and transportation of fuel oil

WVI(OH3)

Flow

 ~2600 m3/h

Lift

 ~300m

Temperature

 -80~450℃

Pressure

 50 bar

Speed

 1500/3000 rpm

WVM(VS6)

Flow

 ~1800 m3/h

Lift

 ~1000m

Temperature

 -80~250℃

Pressure

 150bar

Speed

 1500/3000 rpm

WVS(VS4)

Flow rate

 ~1000 m3/h

Lift

 ~135m

Temperature

 -80~500℃

Pressure

 20 bar

Speed

 1500/3000 rpm

Flange standard

 ANSI/HG/DIN/JIS
