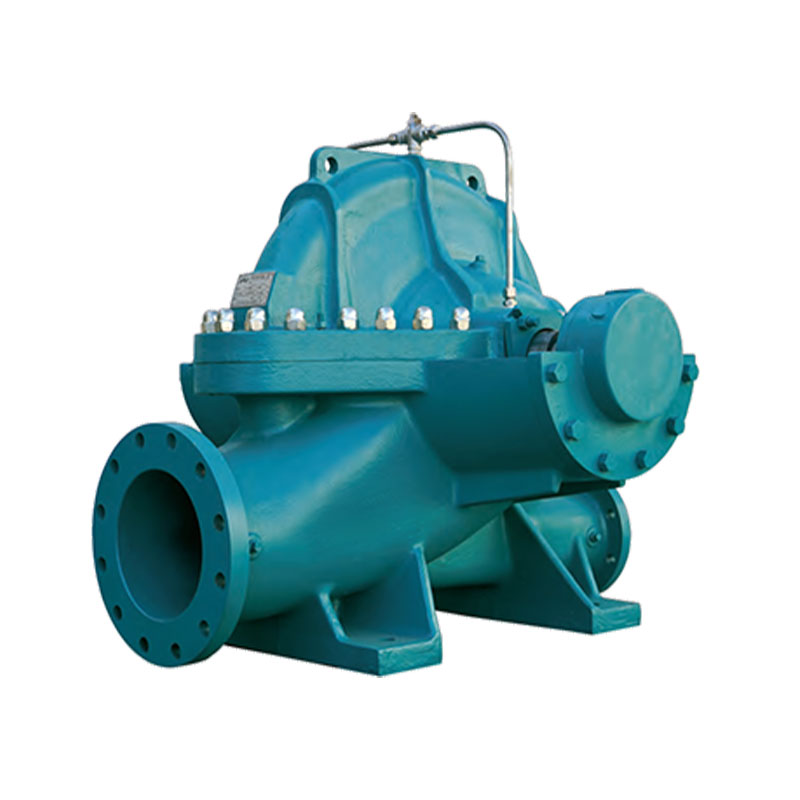

GS (BB1) series high-efficiency single-stage double-suction split-case centrifugal pumps

GS (BB1) series high-efficiency single-stage double-suction split-case centrifugal pump is a new generation of high-efficiency and energy-saving products developed by the company. The products comply with the GB/T5657 centrifugal pump technical conditions standard.

Product features:
• Impeller: Using core technology with independent intellectual property rights, the impeller is specially designed to eliminate the common pressure pulsation phenomenon of double-suction centrifugal pumps, which can ensure low noise and low vibration, and broaden the high-efficiency area of ​​the pump; a new impeller inlet structure that reduces the radial force peak of the double-suction centrifugal pump impeller is established, which enhances the cavitation resistance of the impeller and improves the stability of the impeller.
• Pump casing: Using a special volute technology that can eliminate pressure pulsation, it can effectively control the secondary flow at the impeller outlet and in the pump cavity, reduce the pressure pulsation of the double-suction centrifugal pump, and construct a double-suction centrifugal pump volute with a middle partition, thereby ensuring the high reliability of the pump.
• Shaft: The shaft and coupling of large water pumps (shaft diameter exceeds 100mm) are matched with tapered shafts, and the contact area is ensured to reach more than 80% by grinding, fully ensuring torque transmission and concentricity. At the same time, no special tools are needed for assembly and disassembly, and no open flame heating is required, which is convenient for maintenance and disassembly.
• Bearing body: The bearing body of large water pumps (bearing inner diameter exceeds 120mm) is connected to the pump body and pump cover at 360 degrees. The bearing body connection has high rigidity, ensuring that the pump runs with low vibration and stable operation.

Application areas:
• Generally used to transport clean water without solid particles or liquids with physical and chemical properties similar to water.
• Especially suitable for environments with high requirements for environmental noise and energy efficiency, such as water plants, irrigation, industrial water supply and cooling water circulation systems, air conditioning circulation, etc.
• By replacing the material of the flow-through parts or adding wear-resistant and corrosion-resistant coatings, it can also be used to transport corrosive or abrasive liquids.

There are 189 models and 740 specifications of GS series pumps.

Pump inlet diameter

 150 mm~1600 mm

Flow rate

 75 m3/h~33600 m3/h

Lift

 9 m~233 m

Medium temperature

 -15 ℃ ~ +104 ℃ (please specify separately when ordering over 105 ℃)
