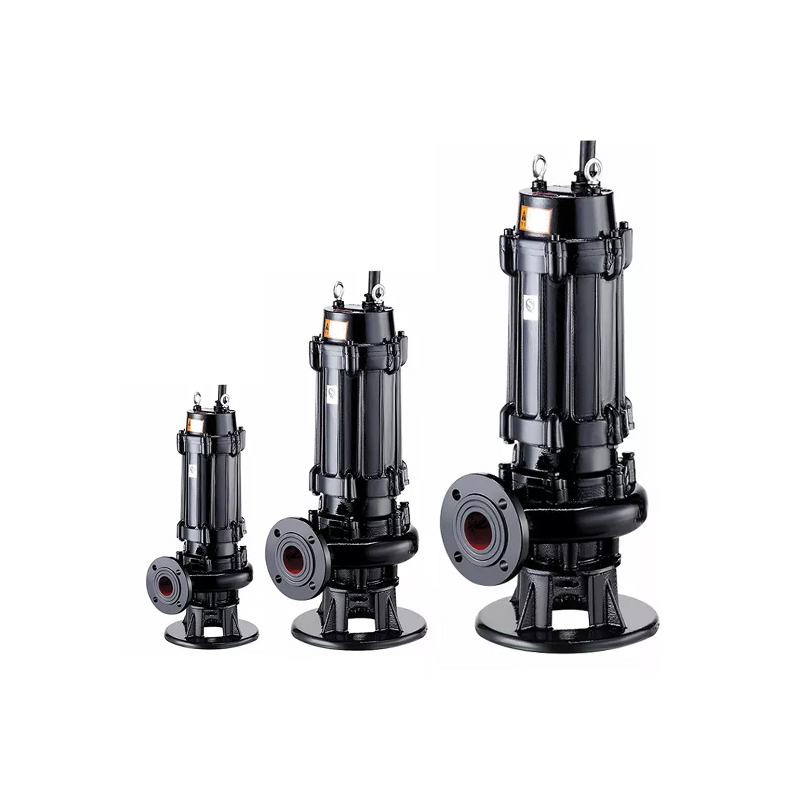

READ MOREThe QW-type non-clogging submersible sewage pump has introduced the advanced technology of ABS Pump Manufacturing Company of the Federal Republic of Germany and successfully developed a non-clogging sewage pump after many improvements. All performance indicators of this product meet the standards of imported similar products. It has functions such as high efficiency, energy saving, and a unique structure. After being put on the market, the product has been welcomed and praised by the majority of users for its unique design and reliable quality and has been selected by many units as a substitute for imported pumps.
Features:
• The design of large flow channel anti-clogging hydraulic components greatly improves the dirt passing capacity and can effectively pass fibrous materials 5 times the diameter of the pump and solid particles with a diameter of about 50% of the diameter of the pump.
• Reasonable design, reasonable matching motor, high efficiency, and significant energy-saving effect. The mechanical seal adopts double-pass series sealing and is made of hard wear-resistant tungsten carbide. It is durable and wear-resistant and can enable the pump to operate safely and continuously for more than 8,000 hours.
• The pump has the characteristics of compact structure, small size, easy movement, and simple installation. An automatic liquid-level control cabinet can be equipped according to user needs. It can automatically control the starting and stopping of the pump according to the required liquid level changes. It does not require special supervision and is extremely convenient to use.
• The pump has a vertical structure. When working, the pump body is immersed in the liquid so it is easy to start. There is no problem of exhaust and evacuation. It also has the characteristics of no leakage and the liquid depth can reach 0.5~7 meters.
Application scope:
• River pond farming
• Sewage discharge from public facilities
• Food and power plant-level municipal sewage projects
Caliber |
25~150 mm |
Flow |
8~180 m3/h |
Lift |
7-60 m |
Speed |
1450/2900 r/min |
Motor power |
1.1~18.5 KW |
Years Industry Experience
Factory Area
Skillful Employees
Product Category
The company is located at No. 18, Jinqiuzhu Road, Xinfeng, Shengci Town, Jingjiang City, in the lower reaches of the Yangtze River. Pump products include magnetic pumps, axial flow pumps, horizontal self-priming pumps, fluorine-lined centrifugal pumps, chemical desulfurization pumps, horizontal centrifugal pumps, bottom pumps, double-suction pumps, slurry pumps, rotor pumps, acid-resistant and wear-resistant pumps, chemical centrifugal pumps, wear-resistant and corrosion-resistant mortar pumps, seal-free fully automatic self-priming pumps, petrochemical process pumps, high-pressure oil pumps, vertical pipeline pumps, screw pumps and other series. Main products of metallurgical equipment: rare earth heat-resistant steel series, rare earth wear-resistant alloy steel series, bimetallic composite wear-resistant steel series, wear-resistant ceramic patch series, wear-resistant arc baffle series, medium-speed coal mill series, stabilizing roller, sinking roller, furnace roller, guide plate, step-type heating furnace series.
Beloni Pump Industry currently has 80 employees, including 12 professional and technical personnel, 6 inspectors, more than 100 sets of various metal cutting equipment, computer CAD-aided design, advanced detection and measurement devices, large-scale special processing equipment, large-scale lifting equipment, etc. The company has the production conditions from design, casting, machining, assembly, and testing. The company has successively obtained ISO9001 quality system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system, and multiple AAA certifications in the pump and valve industry.
At present, the company's products have been widely used in petrochemical, coal mines, power plants, steel mills, agricultural irrigation and drainage, industrial water supply and drainage, municipal construction, sewage treatment, and other industries.
As China QW Type Non-Clogging Submersible Sewage Pump Suppliers and QW Type Non-Clogging Submersible Sewage Pump Factory, the company provides industrial fluid safety delivery solutions for the global and domestic markets. It is a technology-based enterprise integrating chemical pump design, research and development, manufacturing, sales, and service. The company's quality-oriented and innovation-led business philosophy has been recognized by various users in the domestic and foreign markets; the company adheres to the core value of "making customers worry-free". The Mandeno Pump Industry continues to innovate and improve system service capabilities. It is committed to providing customers with safe, stable, and efficient pump products and services, exceeding customer expectations, and enhancing customer value!
