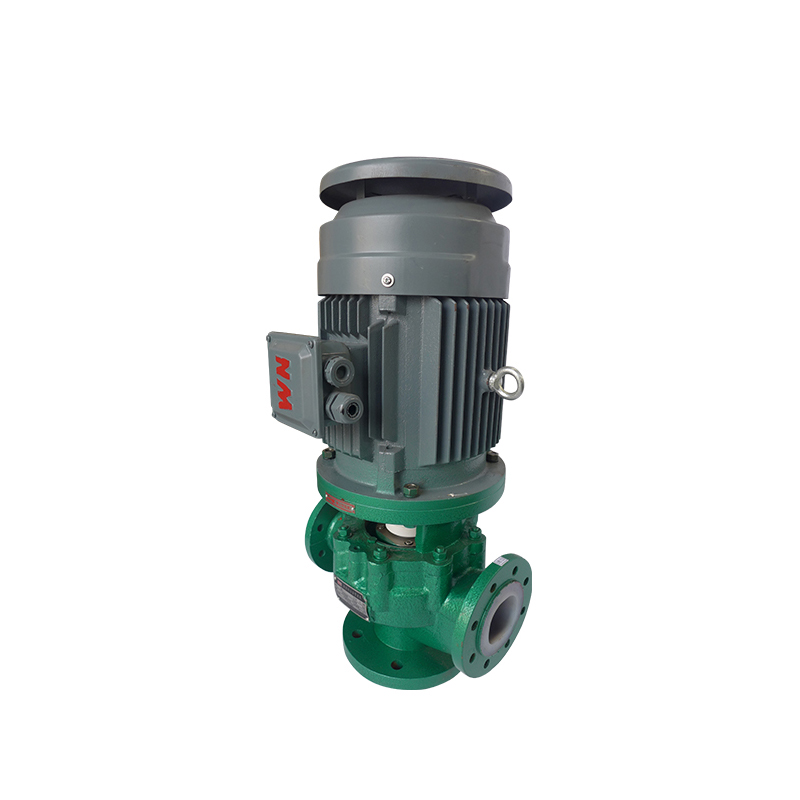

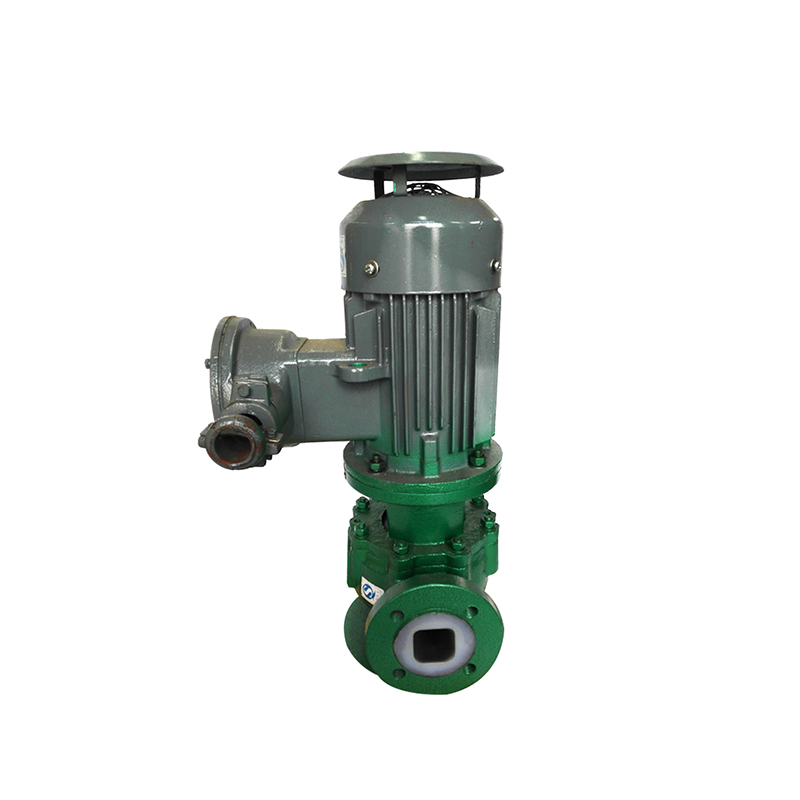

GF Series Fluorine-Lined Pipeline Pumps

The marking, performance, and dimensions of GF-type pipeline corrosion-resistant centrifugal pump products are all by JB/T68781-93, and the manufacturing technical conditions are by JB/T6878.2-93 and are designed by the advanced standards of similar domestic products.

Product features:
• GF series fluorine-lined pipeline pumps are vertical structures with the same inlet and outlet diameters and located on the same center line;
• The impeller is directly connected to the motor shaft, which is efficient, energy-saving, and low-noise, and can effectively balance the radial and axial loads generated by the operation of the pump;
• The shaft seal adopts advanced external bellows mechanical seal static, the ring is made of alumina ceramic, and the dynamic ring is made of PTFE filling material (other materials are specially matched according to the user's special working conditions], which is wear-resistant and corrosion-resistant, has good sealing performance, and effectively increases the service life of the mechanical seal;
• The structure is simple, easy to maintain, and occupies a small area. When inspecting and replacing impellers, seals, and other wearing parts, there is no need to disassemble the pipeline.

Application range:
This product is widely used in petroleum, chemical, metallurgy, electric power, papermaking, flue gas desulfurization, dust removal, food, pharmaceuticals and synthetic fibers, and other departments.

Flow

 2~160 m3/h

Lift

 18~90 m

Cavitation allowance

 2.5~5 m

Motor power

 1.1~30 KW

Temperature range

-20℃~150℃
