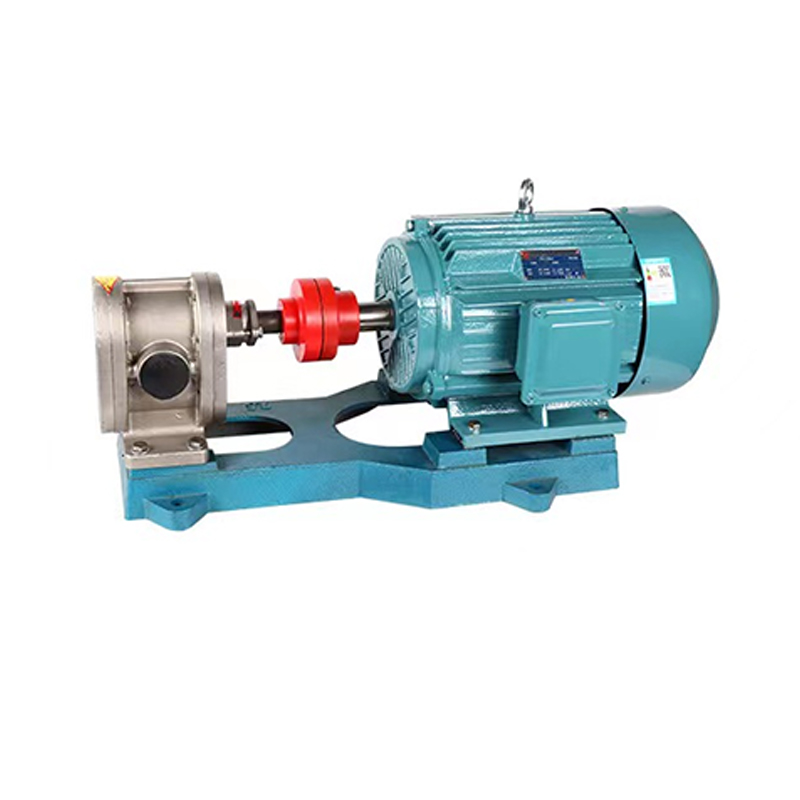

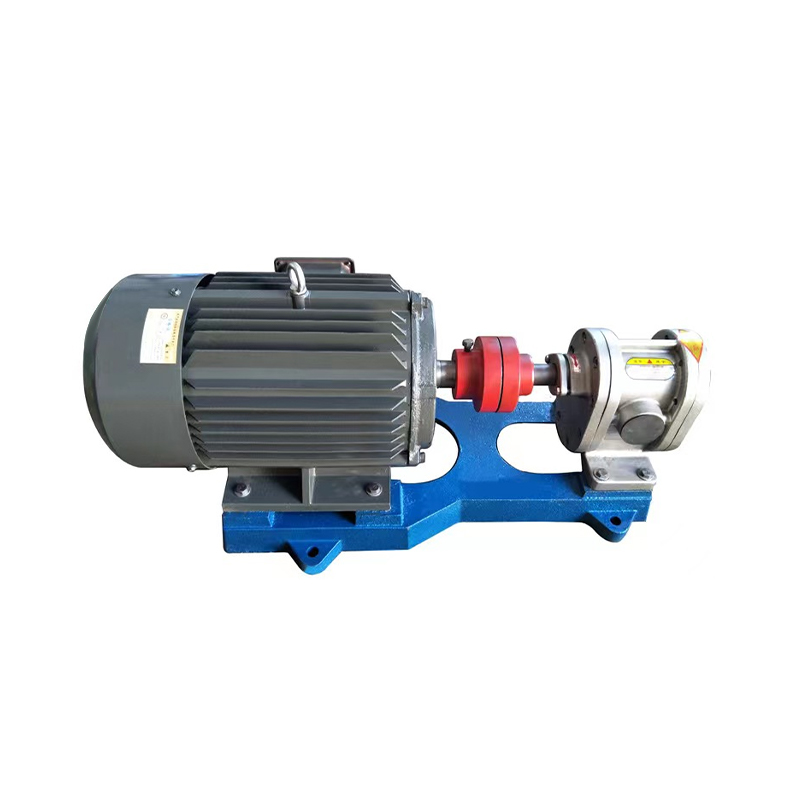

READ MORE2CY series stainless steel gear oil pumps are suitable for conveying lubricating oils or other liquids with similar properties to lubricating oils that do not contain solid particles and fibers, have a temperature not higher than 300℃, and a viscosity of 5x10*~1.5x10m/s (5-1500cSt), as well as for hydraulic transmission systems.
Product features:
• This series of gear pumps mainly consists of gears, shafts, pump bodies, pump covers, bearing sleeves, and shaft end seals (magnetic drive and zero leakage structure can be selected for special requirements).
• The gears have high hardness and wear resistance after nitriding treatment. They are installed together with the shaft in a replaceable sleeve for operation. The lubrication of all parts in the pump is automatically achieved by the conveying medium when the pump is working.
• The four bearing sleeves in the pump are installed in a floating manner in the pump body, and the end face clearance is automatically adjusted according to the working pressure. Therefore, the pump has stable pressure, small output flow pulsation, and high volumetric efficiency.
Application range:
• It can be used as a transmission and booster pump in the oil delivery system;
• It can be used as a fuel pump for delivery, pressurization, and injection in the fuel system; it can be used as a hydraulic pump to provide hydraulic power in the hydraulic transmission system;
• It can be used as a lubricating oil pump in all industrial fields.
Flow rate |
0.6~90 m3/h |
Speed |
900~1400 r/min |
Discharge pressure |
0.6/1.6 Mpa |
Cavitation allowance |
5/5.5/7 m |
Efficiency |
60%~70% |
Motor power |
0.75~30KW |
Years Industry Experience
Factory Area
Skillful Employees
Product Category
The company is located at No. 18, Jinqiuzhu Road, Xinfeng, Shengci Town, Jingjiang City, in the lower reaches of the Yangtze River. Pump products include magnetic pumps, axial flow pumps, horizontal self-priming pumps, fluorine-lined centrifugal pumps, chemical desulfurization pumps, horizontal centrifugal pumps, bottom pumps, double-suction pumps, slurry pumps, rotor pumps, acid-resistant and wear-resistant pumps, chemical centrifugal pumps, wear-resistant and corrosion-resistant mortar pumps, seal-free fully automatic self-priming pumps, petrochemical process pumps, high-pressure oil pumps, vertical pipeline pumps, screw pumps and other series. Main products of metallurgical equipment: rare earth heat-resistant steel series, rare earth wear-resistant alloy steel series, bimetallic composite wear-resistant steel series, wear-resistant ceramic patch series, wear-resistant arc baffle series, medium-speed coal mill series, stabilizing roller, sinking roller, furnace roller, guide plate, step-type heating furnace series.
Beloni Pump Industry currently has 80 employees, including 12 professional and technical personnel, 6 inspectors, more than 100 sets of various metal cutting equipment, computer CAD-aided design, advanced detection and measurement devices, large-scale special processing equipment, large-scale lifting equipment, etc. The company has the production conditions from design, casting, machining, assembly, and testing. The company has successively obtained ISO9001 quality system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system, and multiple AAA certifications in the pump and valve industry.
At present, the company's products have been widely used in petrochemical, coal mines, power plants, steel mills, agricultural irrigation and drainage, industrial water supply and drainage, municipal construction, sewage treatment, and other industries.
As China 2CY Series Self-Priming Booster Stainless Steel Gear Oil Pump Suppliers and 2CY Series Self-Priming Booster Stainless Steel Gear Oil Pump Factory, the company provides industrial fluid safety delivery solutions for the global and domestic markets. It is a technology-based enterprise integrating chemical pump design, research and development, manufacturing, sales, and service. The company's quality-oriented and innovation-led business philosophy has been recognized by various users in the domestic and foreign markets; the company adheres to the core value of "making customers worry-free". The Mandeno Pump Industry continues to innovate and improve system service capabilities. It is committed to providing customers with safe, stable, and efficient pump products and services, exceeding customer expectations, and enhancing customer value!
