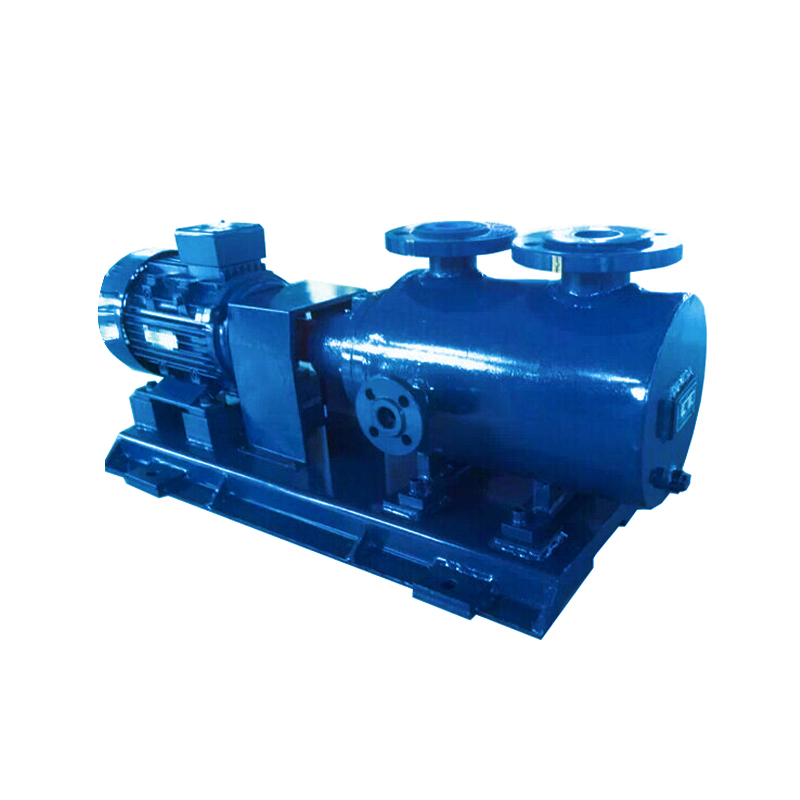

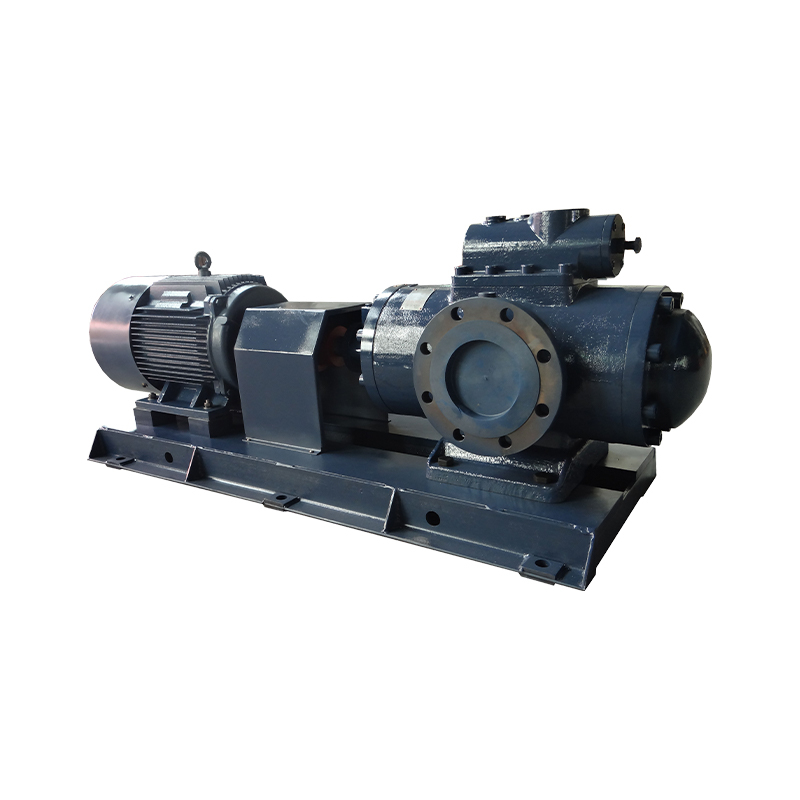

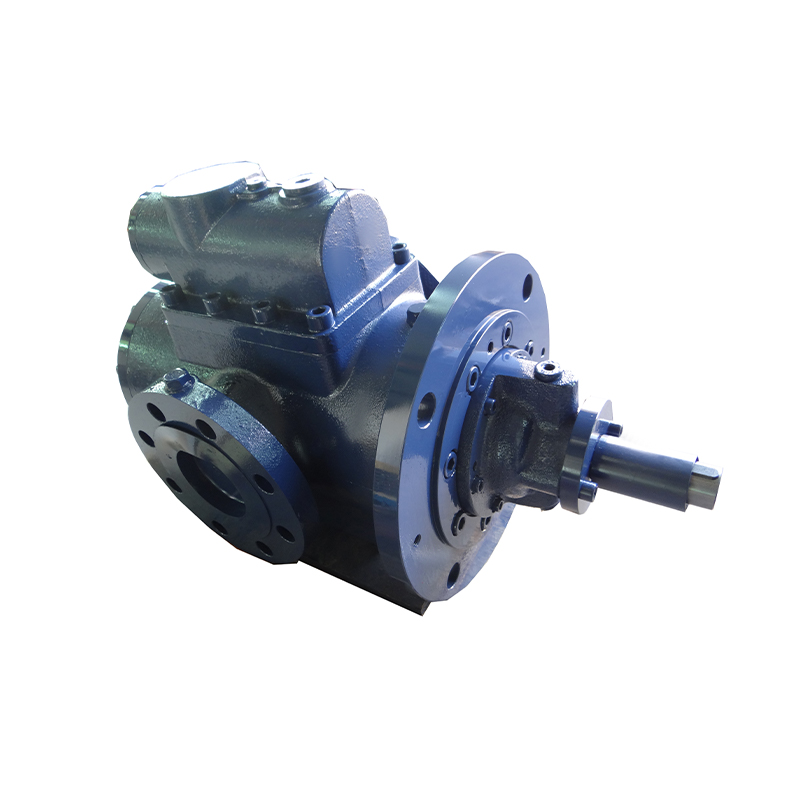

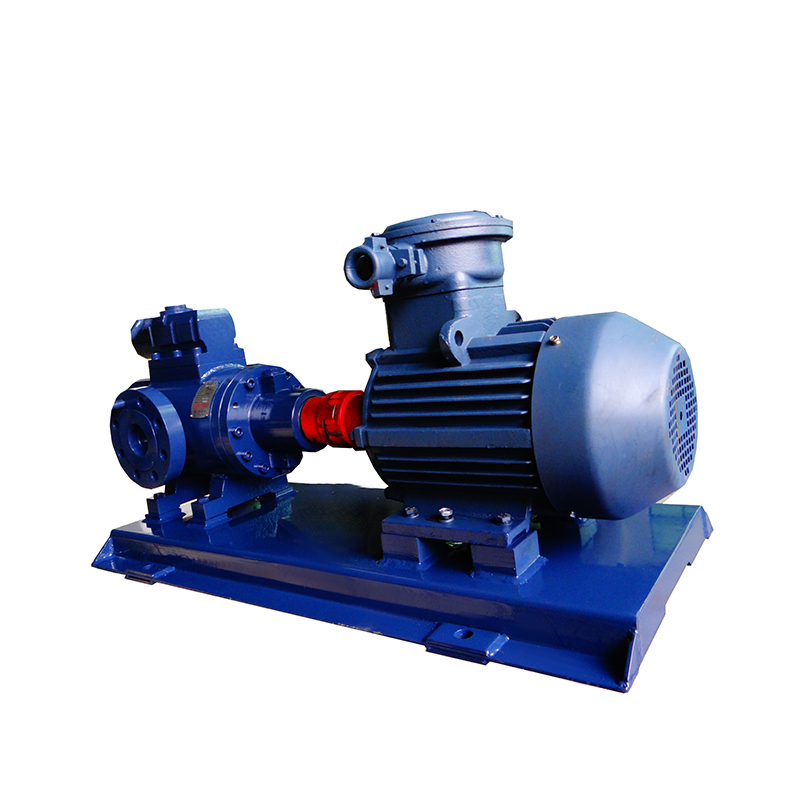

READ MOREThe High-pressure Freon three-screw pump is used as a hydraulic, lubricating, and remote motor pump in the machinery industry; it has stable flow, small pressure pulsation, low noise, and long life; it has strong self-priming ability, does not need to install bottom valve or vacuum auxiliary equipment, and works reliably. It has a compact structure, small in size, is lightweight, has high allowable speed, and can be directly driven by a motor or other prime movers. The conveying medium has no foam and vortex and can convey medium with higher viscosity and high temperature.
Product features:
• Stable flow, small pressure pulsation, low noise, and long life;
• Strong self-priming ability, does not need to install bottom valve or vacuum auxiliary equipment, and works reliably;
• Compact structure, small size, lightweight, high allowable speed, and can be directly driven by a motor or other prime movers;
• The conveying medium has no foam and vortex and can convey medium with higher viscosity and high temperature.
Application range:
• Suitable for conveying liquids with no abrasive particles, no chemical corrosion to pump materials, and lubricating properties;
• The conveyed media include various oils and oil products including heat transfer, lubrication, hydraulic oil and asphalt, grease, chemical products, and lubricating media such as paraffin, wax oil, soap, etc.;
• Used as fuel injection, fuel supply, and delivery pumps in heating equipment;
• Used as hydraulic, lubrication, and remote-control motor pumps in the machinery industry;
• Used as loading, conveying, and liquid supply pumps in the chemical, petrochemical, and food industries;
• Used as conveying, pressurization, fuel injection, and lubricating oil pumps and marine hydraulic device pumps on ships.
Flow range |
1~320 m3/h |
Outlet pressure range |
≤10 MPa |
Inlet pressure range |
≤0.6 MPa |
Medium temperature range |
-20℃~200℃ |
Medium viscosity range |
3~7000 mm2/s |
Speed range |
<5000 r/min |
