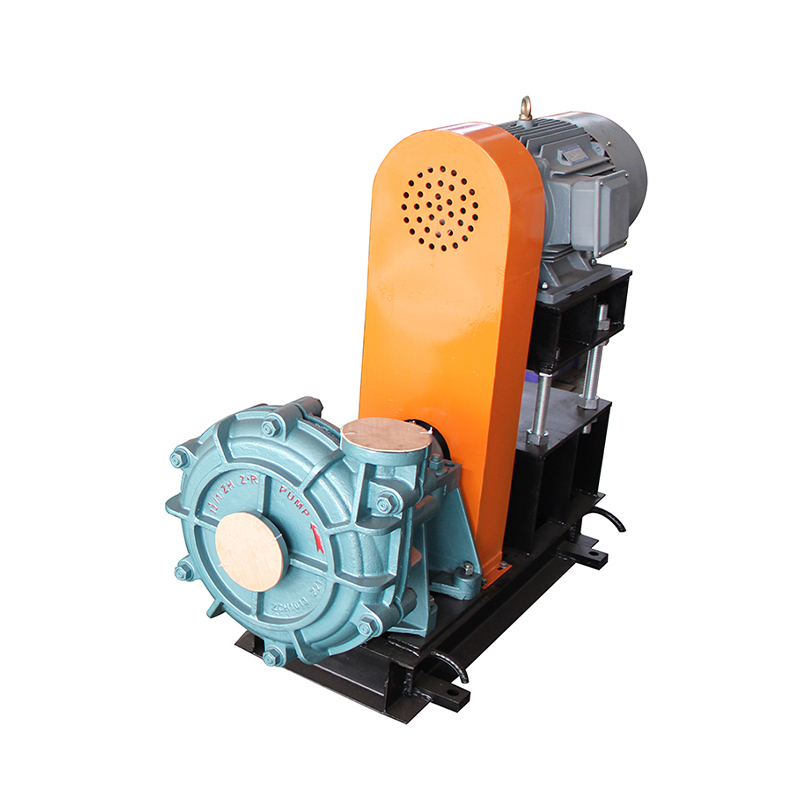

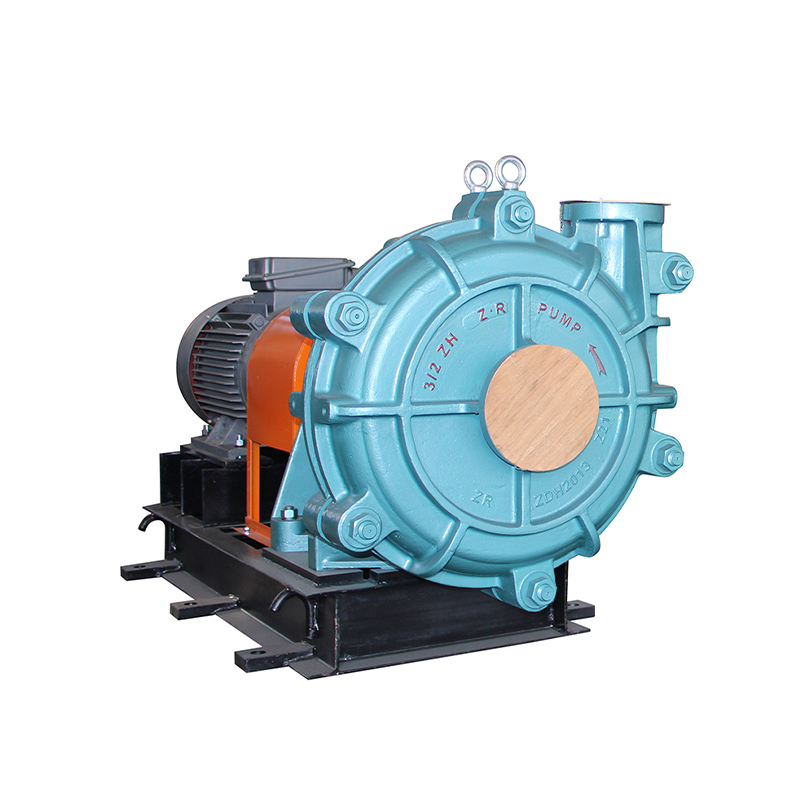

READ MOREZH pump is a single-stage single-suction cantilever double-shell horizontal centrifugal slurry pump, designed for conveying highly abrasive slurry in mining, metallurgy, power, chemical industry, papermaking, and building materials industries. This series of pumps is particularly suitable for small flow, high concentration, and high head conditions that single-stage pumps cannot transport.
Product features:
• The large diameter and short overhang ensure the rigidity of the shaft, suitable for high-power conditions;
• The auxiliary blades in the front and rear covers of the impeller can reduce the sealing pressure and minimize recirculation;
• The housing is made of ductile iron, and the reinforcement ribs help the housing withstand high pressure;
• The flow-through parts are made of high-chromium alloy or rubber that is wear-resistant, corrosion-resistant, and impact-resistant, which increases the service life of the pump.
Application range:
• Applicable to highly abrasive slurries with a density of 40~80%;
• Applicable to low-abrasive slurries with a density of 40~99.99%;
• Applicable to low-abrasive slurries with a density of 40~120%
Flow |
~1152 m3/h |
Lift |
~98 m |
Speed |
1400~2200 r/min |
Efficiency |
20%~65% |
Cavitation allowance |
2~5.5 m |
Motor power |
30~1200 KW |
Years Industry Experience
Factory Area
Skillful Employees
Product Category
The company is located at No. 18, Jinqiuzhu Road, Xinfeng, Shengci Town, Jingjiang City, in the lower reaches of the Yangtze River. Pump products include magnetic pumps, axial flow pumps, horizontal self-priming pumps, fluorine-lined centrifugal pumps, chemical desulfurization pumps, horizontal centrifugal pumps, bottom pumps, double-suction pumps, slurry pumps, rotor pumps, acid-resistant and wear-resistant pumps, chemical centrifugal pumps, wear-resistant and corrosion-resistant mortar pumps, seal-free fully automatic self-priming pumps, petrochemical process pumps, high-pressure oil pumps, vertical pipeline pumps, screw pumps and other series. Main products of metallurgical equipment: rare earth heat-resistant steel series, rare earth wear-resistant alloy steel series, bimetallic composite wear-resistant steel series, wear-resistant ceramic patch series, wear-resistant arc baffle series, medium-speed coal mill series, stabilizing roller, sinking roller, furnace roller, guide plate, step-type heating furnace series.
Beloni Pump Industry currently has 80 employees, including 12 professional and technical personnel, 6 inspectors, more than 100 sets of various metal cutting equipment, computer CAD-aided design, advanced detection and measurement devices, large-scale special processing equipment, large-scale lifting equipment, etc. The company has the production conditions from design, casting, machining, assembly, and testing. The company has successively obtained ISO9001 quality system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system, and multiple AAA certifications in the pump and valve industry.
At present, the company's products have been widely used in petrochemical, coal mines, power plants, steel mills, agricultural irrigation and drainage, industrial water supply and drainage, municipal construction, sewage treatment, and other industries.
As China ZH Series Cantilever Double-Shell Horizontal Slurry Pump Suppliers and ZH Series Cantilever Double-Shell Horizontal Slurry Pump Factory, the company provides industrial fluid safety delivery solutions for the global and domestic markets. It is a technology-based enterprise integrating chemical pump design, research and development, manufacturing, sales, and service. The company's quality-oriented and innovation-led business philosophy has been recognized by various users in the domestic and foreign markets; the company adheres to the core value of "making customers worry-free". The Mandeno Pump Industry continues to innovate and improve system service capabilities. It is committed to providing customers with safe, stable, and efficient pump products and services, exceeding customer expectations, and enhancing customer value!
