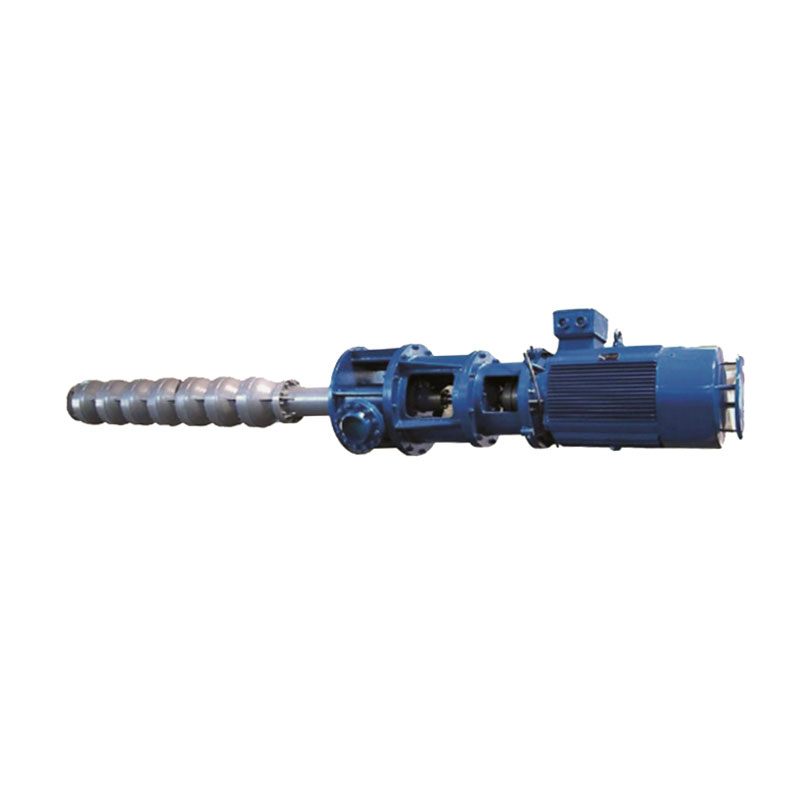

JSYA Series Pumps Single-Stage Multi-Stage Single-Shell Chemical Pumps

Product Overview:
JSYA series pumps are vertical, single-stage or multi-stage, single-suction centrifugal pumps, suitable for conveying various clean, slightly polluted, low-temperature or high-temperature, chemically neutral or corrosive liquids, especially suitable for conveying flammable, explosive, easily vaporized, toxic, and low-temperature media. JSYA series pumps meet the design standard of the American Petroleum Institute API61011th.

Application Scope:
Mainly used in refineries, petrochemicals, cryogenic engineering, liquefied gas light hydrocarbon transportation stations, power plants, offshore oil production platforms, etc. Especially suitable for conveying liquefied gas, methane, ethane, ethylene, propylene, etc.

Structural Features:
JSYA series vertical submersible pumps are multi-stage, radial split type. The stage impeller is generally a suction impeller. The axial force is borne by the radial thrust ball bearing, and the axial force is balanced by the balance drum device when the pressure difference increases. The bearing lubrication adopts thin oil lubrication with an independent internal circulation automatic lubrication system. The hydrodynamic radial sliding bearing is located at the inlet end of the pump. When the pump is installed at a certain depth, the pump shaft with the intermediate suction pipe and discharge pipe is located at the upper part of the mounting flange, 180 degrees apart. From the drive end, the pump rotates counterclockwise and can also be manufactured according to customer requirements.

Material:
Main materials: S-3, S-5, S-6, S-8, S-9, C-6, A-7, A-8, D-1, D-2, etc. Other materials can also be used

Seal:
All layouts and systems of API682 can be selected
